Label:Yes
Mute control: Yes
Efficiency: 90%
Volume adjustment: none
Package Included:1Pc Mini Amplifier Board

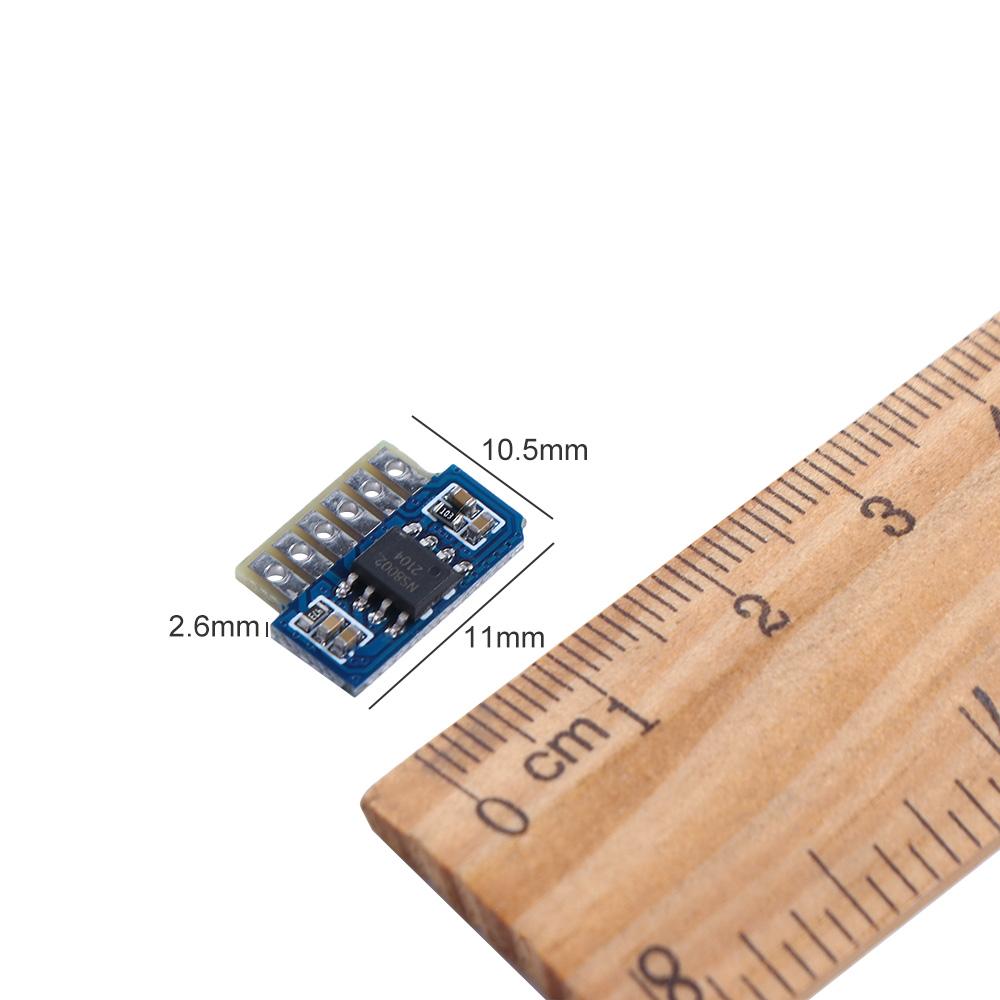

PCB Size: length 16 × width 10.5 × thickness 2.6mm (with protruding part)
Installation: patch
Output impedance: 4-8
Output power: mono 3W
Frequency response: 150HZ-20KHZ
Supply voltage: 2V-5V (3.7V lithium battery can be used)
Features:
Power amplifier board with NS8002 (beyond the domestic 8002A, B, C, D) AB class efficient power amplifier chip carefully debug sound quality perfect, strong power, without any interference, it is fine!

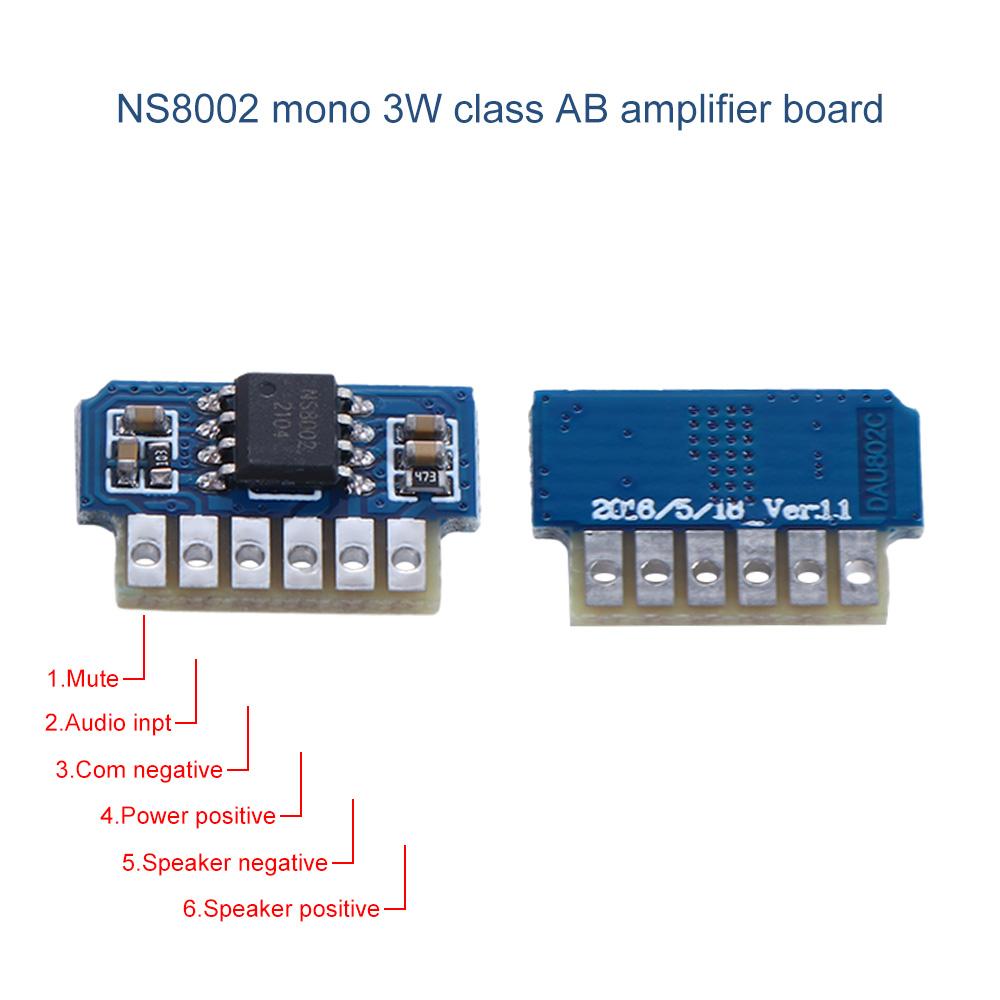

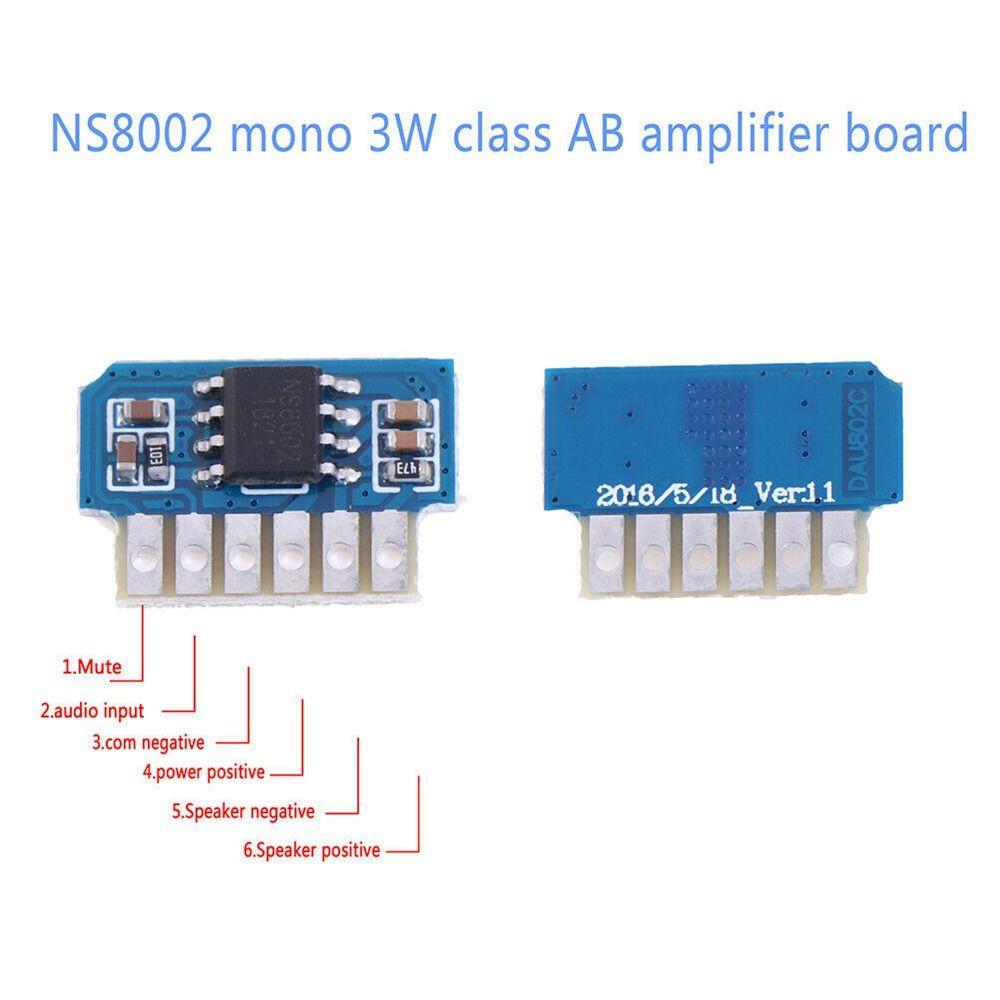

Wiring instructions:This board should be grounded, 3 feet for the power supply negative and ground sharing. 1 foot for the quiet output, and 3 feet to be connected together, when the voltage is 0 when the sound, the voltage is 0.5-5V when the silent, no sound output.
