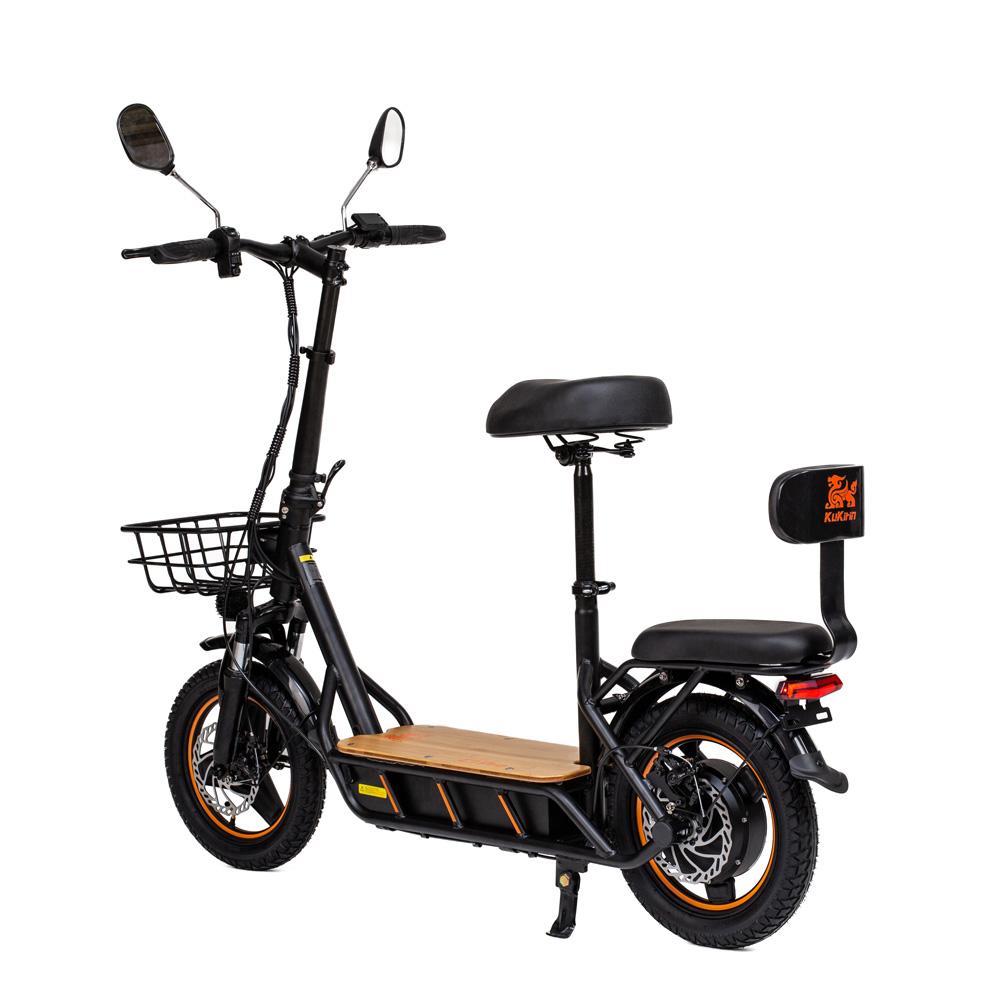

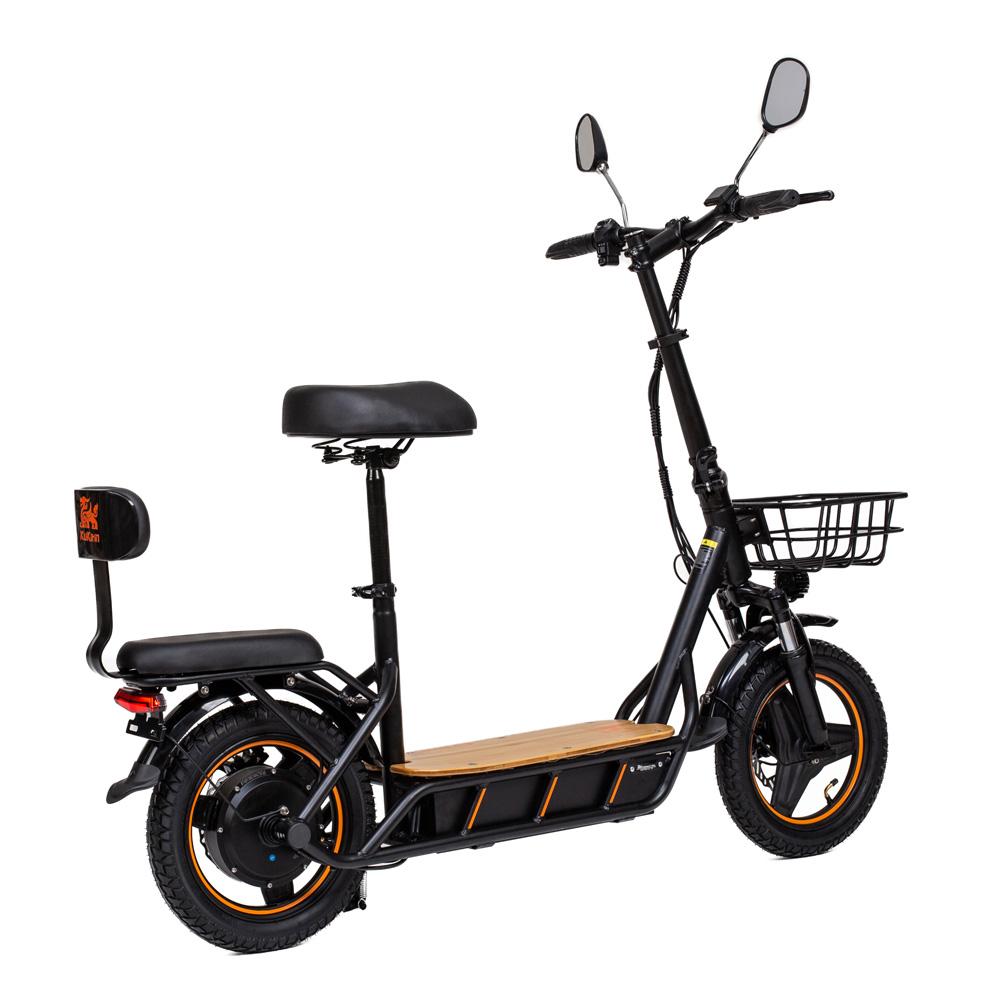

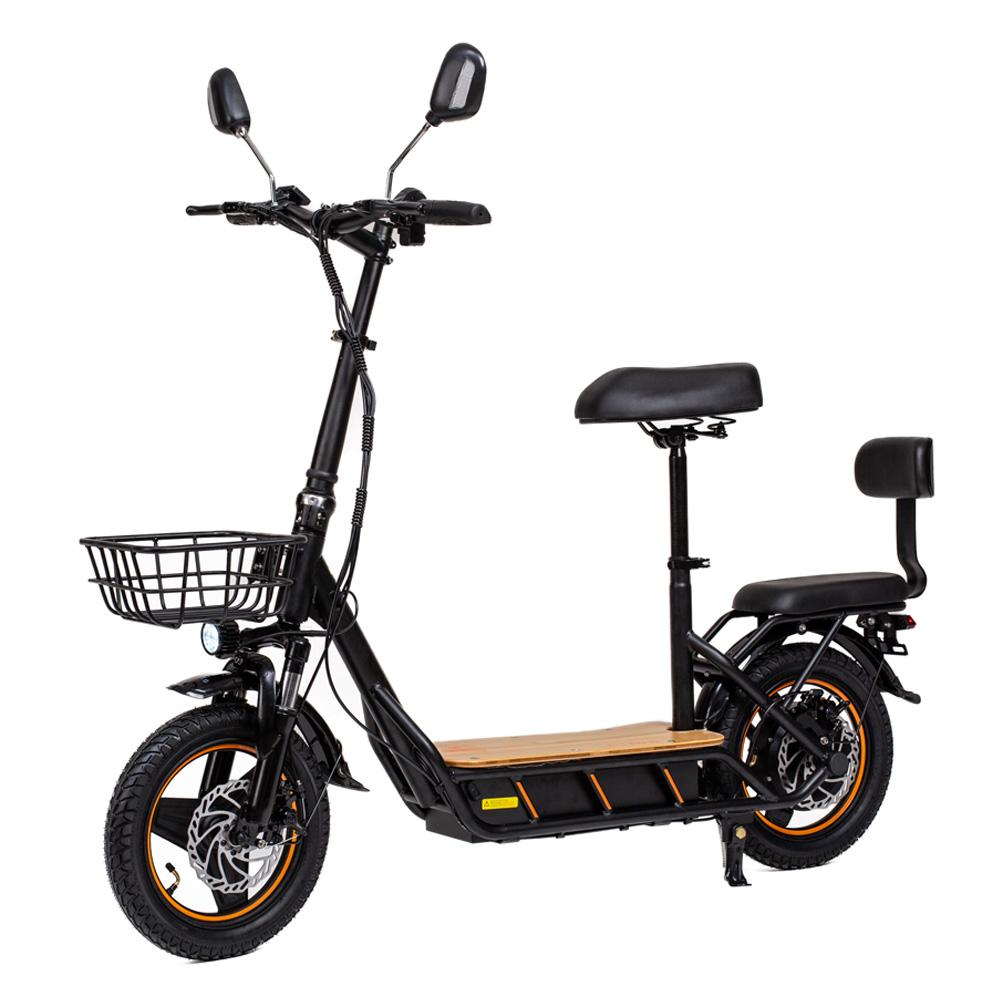

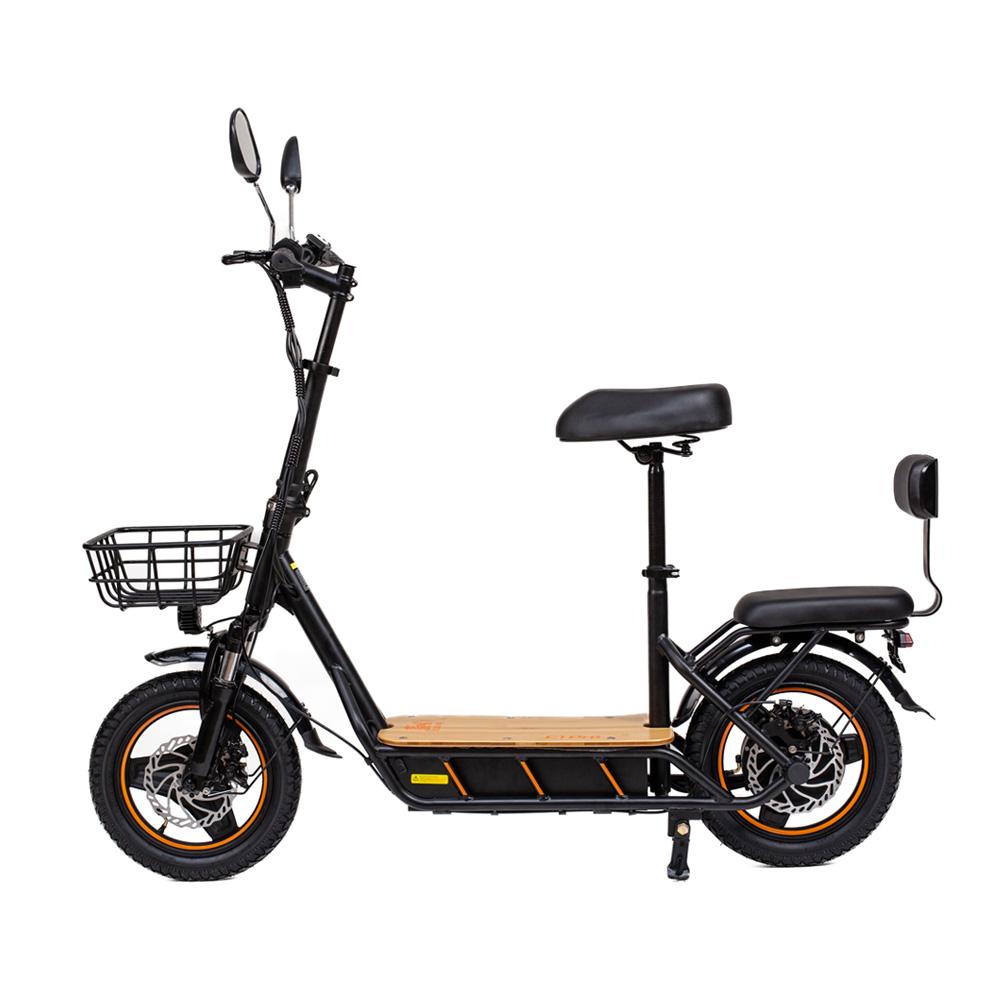

Kukirin C1 Pro Folding Electric Scooter for Adult 500W, 48V 26Ah, 45km/h, 14" Tires, Disc Brake, IP54, Solid wood pedals, with Basket & Seats

Coolbe: Lad e-sykkelen eller e-sparkesykkelen din trygt

• Ikke la batteriet være uten tilsyn når du er borte fra hjemmet eller sover.

• Ikke dekk til ladere eller batterier under lading.

• Ikke overbelast uttak eller bruk uegnede skjøteledninger.

• Ikke lad eller oppbevar batterier i direkte sollys eller i områder med temperaturer over 45⁰C.

• Ikke lad batterier i nærheten av brennbare materialer eller farlige stoffer.

• Når ladingen er fullført, koble alltid fra laderen.

• Bruk alltid kun den originale laderen som er egnet for batteriet.

• Kontakt alltid en profesjonell når du bygger om din e-sykkel eller e-sparkesykkel.

• Sjekk alltid batteriet (og laderen) for synlige skader.

-----

Model： KuKirin C1 Pro

📊Basic parameter Product G.W：37kg Product N.W：33kg Expend size：1455*635*1100mm Fold size：1455*700*680mm Handlebar size：635mm Pedal to Handlebar size：480*210mm Chassis height：820mm Pedal size：130mm Max Load：120kg Max speed：45km/h Speed gear：1st、2nd、3rd（speed limit） 1 gear：23km/h、2 gear：33km/h、3 gear：50km/h 1st、2nd、3rd（65kg Load） 1 gear：20km/h、2 gear：30km/h、3 gear：45km/h Middle speed mileage（65kg Load）：≤100km Performance Climbing ability：≤18° slope Brake system：Front and rear disc brake&e-brake Brake distance：7-10m Waterproof level：IP54 Material Frame material：Iron frame

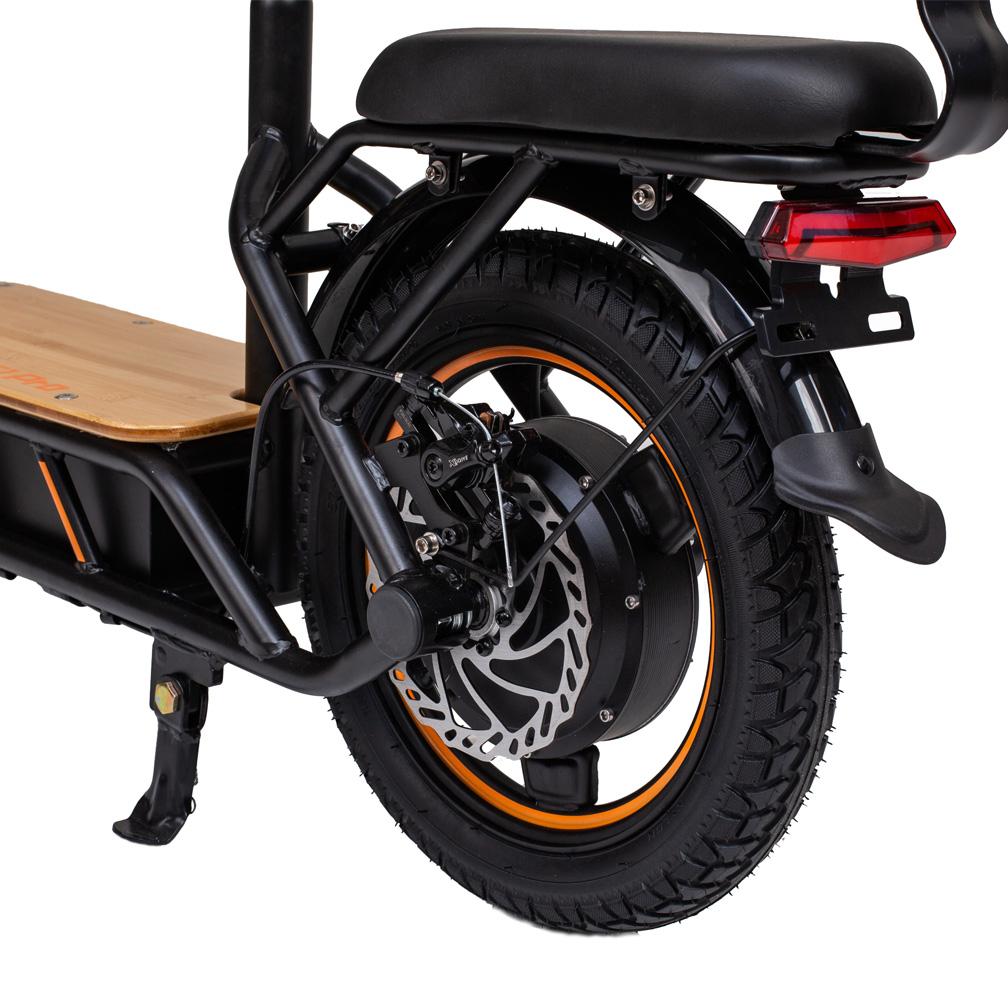

⚙️Motor Motor type：Integral hub motor (rear wheel single drive) Voltage：48V Acclerate mode：Sine wave Rated power：500W Instantaneous maximum power：800W Rated speed：588.4 rpm Max output torque：35.84 N·m

🔋Battery Model：18650 Lithoum battery Voltage：48V Single cell capacity：2600mAh Battery pack capacity：26Ah Standard power consumption KW.H：1.2 kW·h Battery protect system：Battery protective board（BMS）

🔌Charger Input voltage：100-240V~50/60Hz Input current：3A Max Output voltage：54.6V Output current：3A Charging time：8-9h

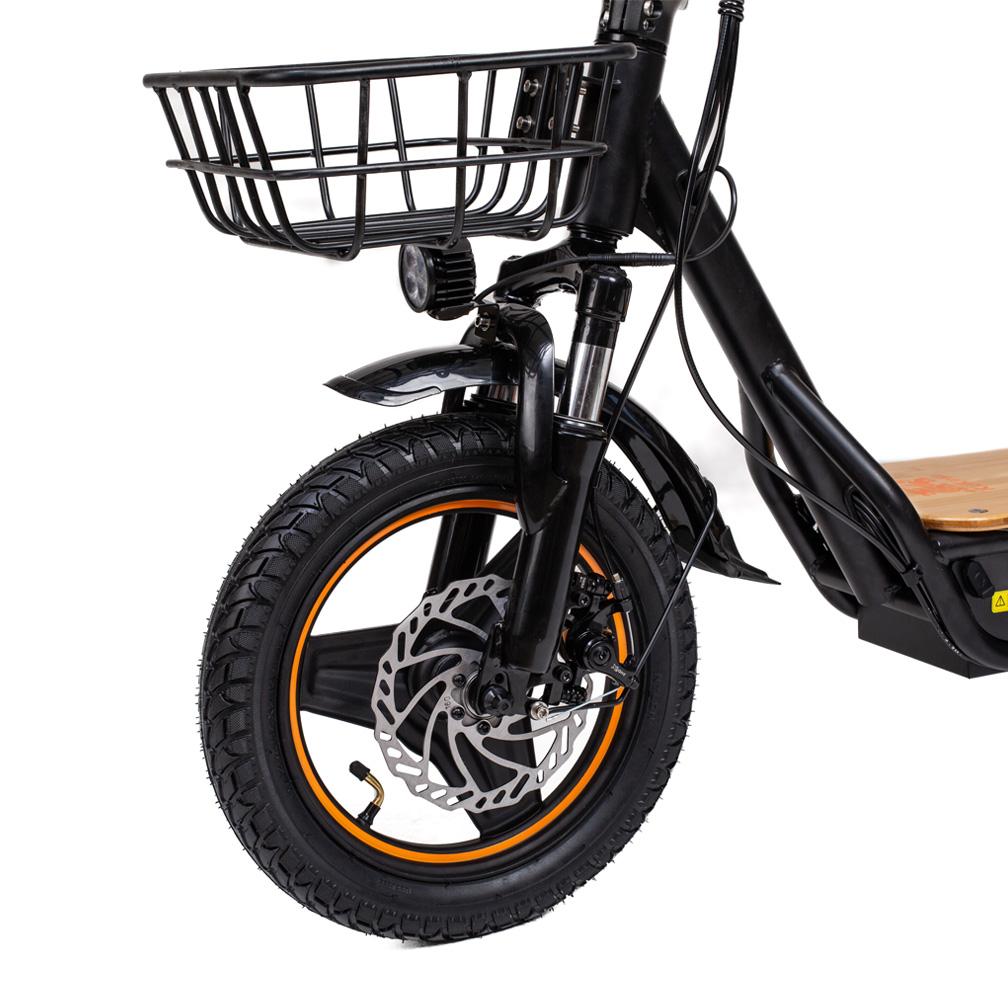

🛡️Shock absorber system Front shock absorber：Front fork spring shock absorber Rear shock absorber：/

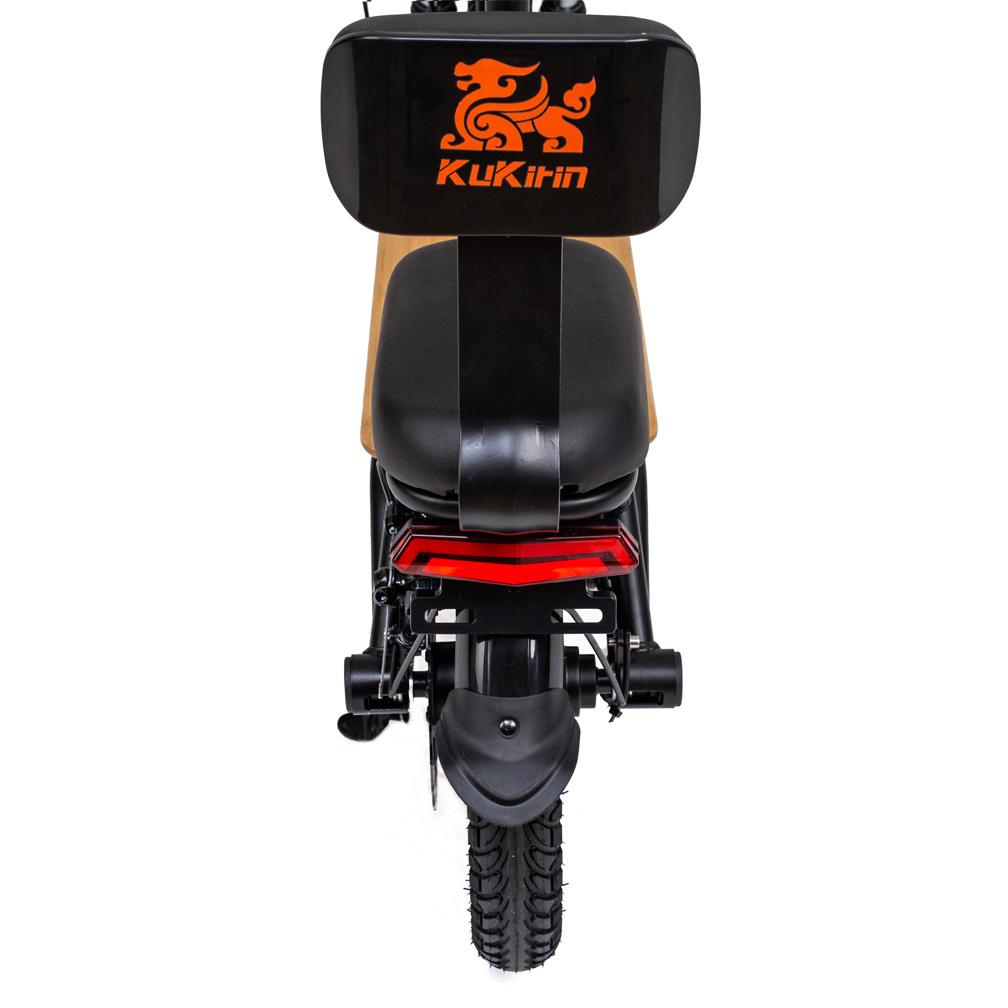

💡Light System Headlight type：LED Headlight power：6W Headlight illumination angle：45° Headlight irradiation area：5㎡ Turn light：Yes Taillight："Yes,The taillights are on when the headlight is on, taillight flash when breaking."

🛞Tire Size：14*2.125in Type：Tubeless Optimum tire pressure：240-310kPa(35-45psi)

🛑Disc brake disc Outer diameter：/ Thread hole diameter：/

📱Instrument Type：LED Instrument material：ABS Size：40*58mm Show content：Speed, mileage, headlights, cruise, brakes, battery level, logo, gear position, etc. Function setting："1.Press and hold up and down buttons simultaneously for 3 seconds to enter or exit the parameter setting interface and save it. In the setting mode, short press the power button to switch to different parameters. 2.Press the power button 6 times in succession to switch the speed limit successfully: Speed limit 01 flashes 3 times, Unlimited speed 02 flashes 3 times. P01 is the setting of non-zero start and zero start, 0=zero start, 1=non-zero start; P02 speed limit value ratio, unit 30-100%, default 100; P03 is the wheel diameter setting, unit, inches 40-400, default 140; P08 is the automatic cruise function, 0 = no cruise, 1 = automatic cruise; P09 Battery voltage selection: 24V, 36V, 48V, default 48V."

📦Package Information Packing size：1200*250*600mm Packing list：User manual*1,Charger*1,Hexagon socket*2, Wrench*1, Rearview mirror*2, Rear seat back*1, Front basket*1, Headlight*1, Quick release shaft*1; Seat*1, Seat tube*1
