Features:
HighDefinition LCD Display: The tester
Features a highdefinition LCD display with a builtin backlight, allowing for easy reading of measurements in both brightly lit and dark environments and ensuring clear visibility of values at all times.

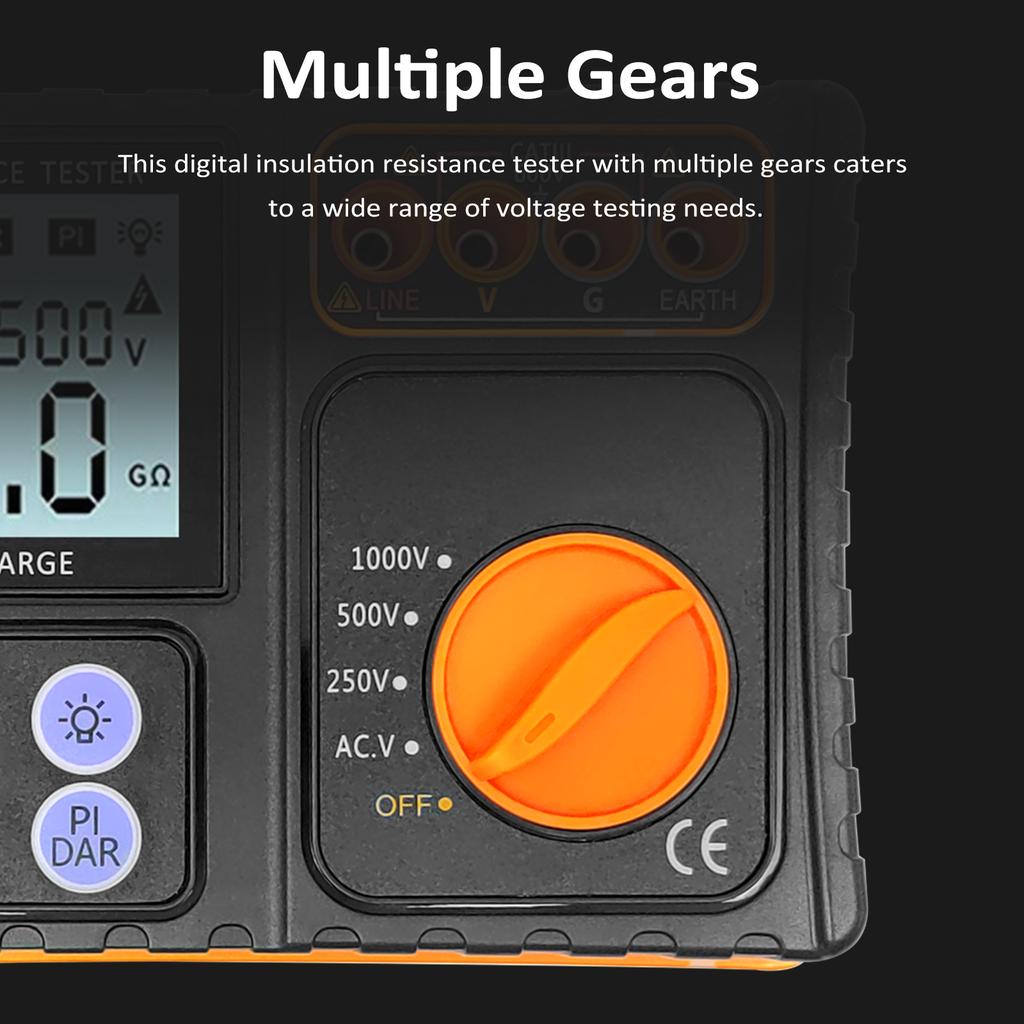

MultiVoltage Level Design: Unlike traditional handcranked meters, this digital insulation resistance tester is designed with multiple voltage levels, allowing it to meet a wider range of voltage testing requirements.
High Accuracy: The insulation resistance tester boasts a high level of accuracy, with a range of +/-(3percent +5dgt) for 0.00M Ohm 99M Ohm and +/-(5percent +5dgt) for 100M Ohm 11.0G Ohm , ensuring precise measurements and reliable results.

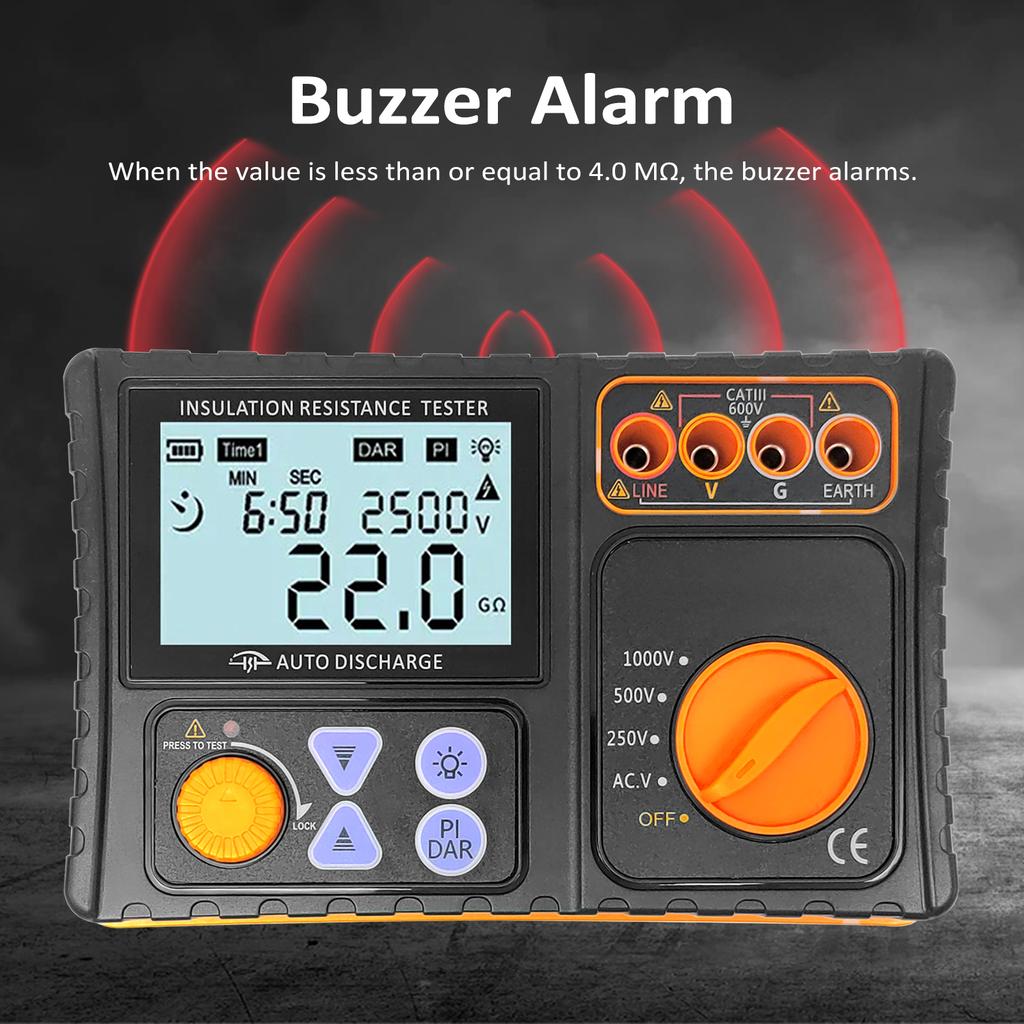

Buzzer Alarm: The insulation tester is equipped with a buzzer alarm that sounds when the insulation resistance of the device being tested falls below 4M Ohm .
Wide Application: The insulation resistance tester can be used in a variety of applications, including electromechanical installation testing, cable testing, electrical equipment testing, power transmission testing, insulation fault detection in new energy vehicles, and insulation testing in new energy vehicles.
Specifications:

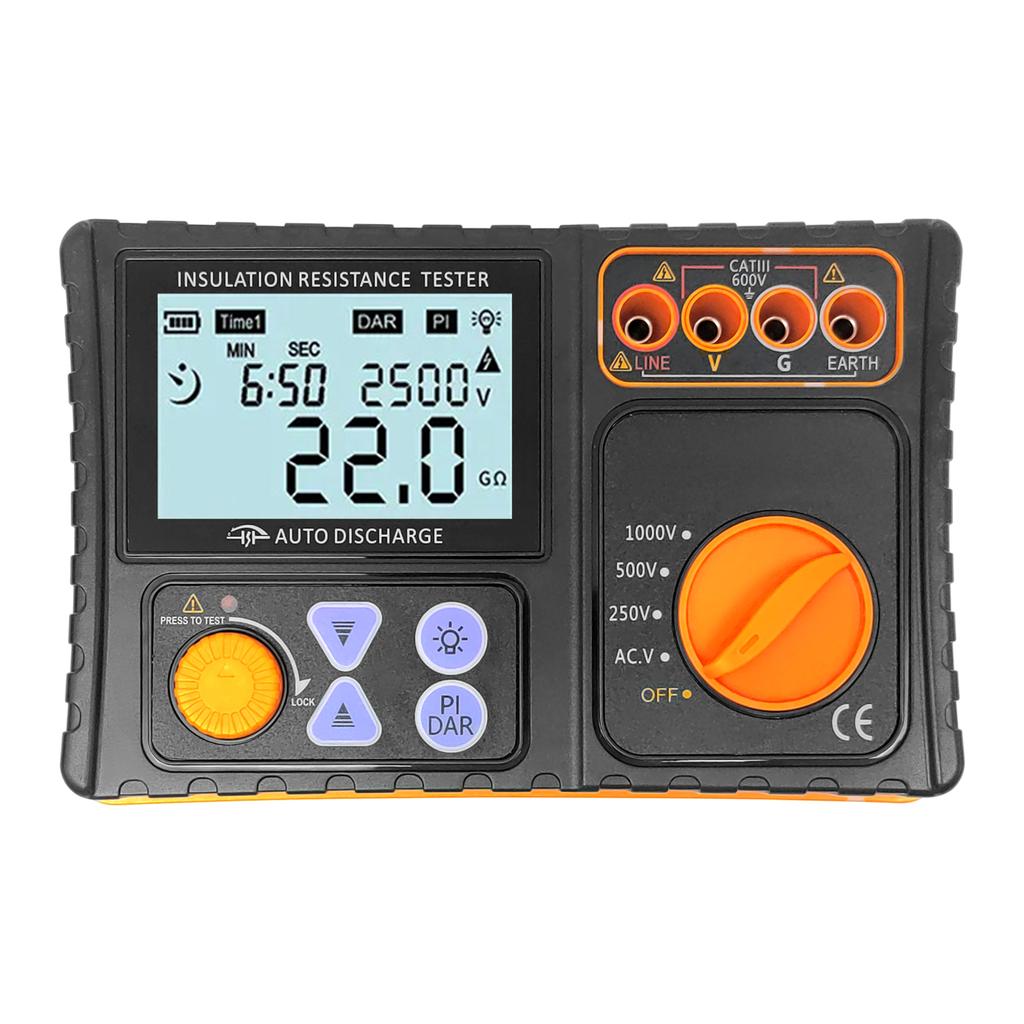

Item Name: Digital Insulation Resistance Tester
Main Material: Plastic
Power Supply: 1.5V AA Battery * 6pcs (Not Included)
Color: Orange
Size: 16.5*10.5*6.3cm6.5*4.13*2.48inch
Rated Voltage: 250V MAX: 5.5G Ohm , 500V MAX: 5.5G Ohm , 1000V MAX: 11.0G Ohm
Range of Accuracy: 0.00M Ohm 99M Ohm : (3percent +5dgt), 100M Ohm 11.0G Ohm : (5percent +5dgt)
Measuring Range: 0.00M Ohm ~11.0G Ohm (When the value is less than or equal to 4.0 M Ohm , the buzzer alarms)
DC Open Circuit Voltage: 250V10percent , 500V10percent , 1000V10percent
Rated Test Current: 250K Ohm load 0.9mA~1.1mA; 500K Ohm load 0.9mA1.1mA; 1M Ohm load 0.9mA~1.1mA
Short Circuit Current: less than Approximately less than 1.8mA
AC Voltage Test
Measuring Range: AC30V AC750V (50Hz60Hz) Resolution: 1V
Precision: (2percent +3dgt)
Package Information:
Package Size: 23*15*7cm9.06*5.91*2.76inch
Package Weight: 770g1.7lb
Package List:
1 * Insulation Resistance Tester
2 * Test Lead
2 * Crocodile Clip
1 * Resistor
1 * Carrying Bag
