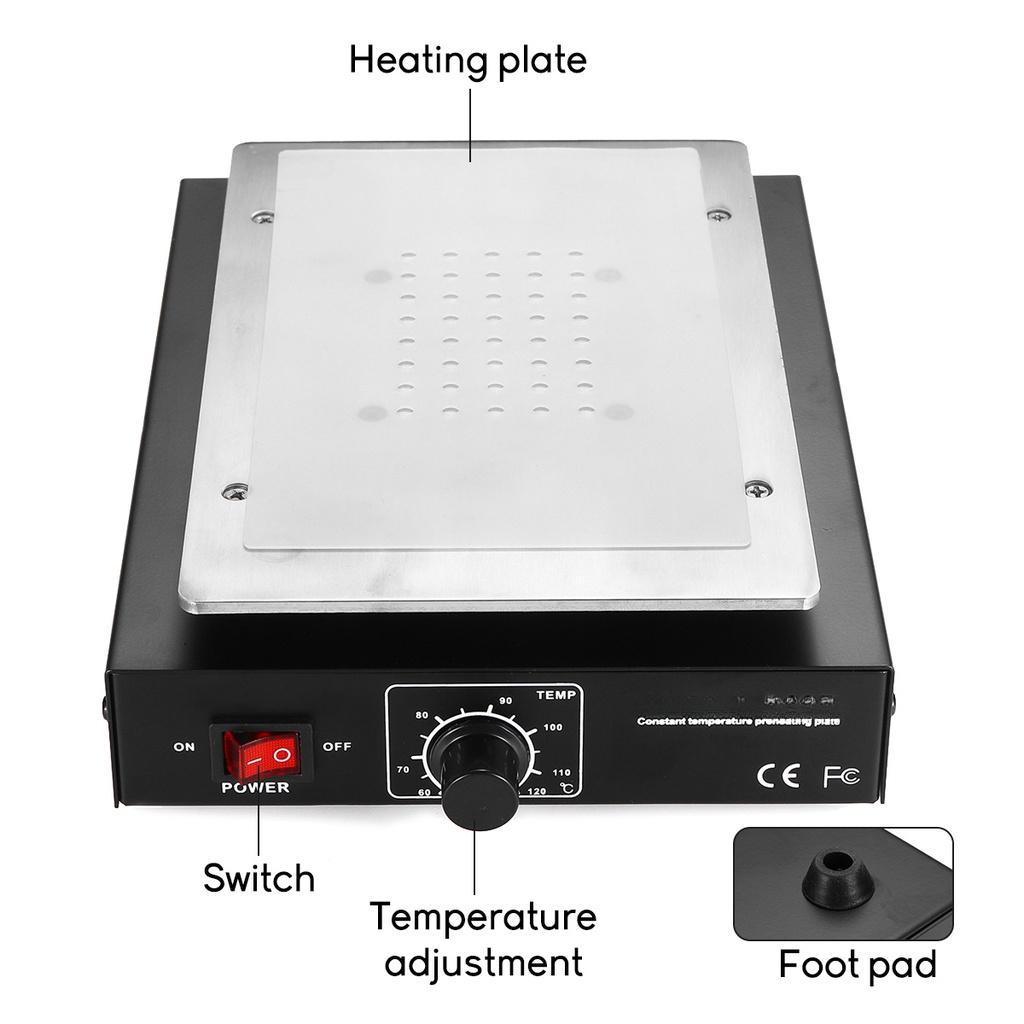

Features:
- Auto heating metal plate, maximum temperature is 120 centigrade.
- Safety power system inside, avoiding the electric leakage problem.
- Anti static body material, prevent the LCD and the flex cable being damaged from the static.
- Smooth metal plate to hold the touch-screen without any damaged.
- Temperature should be set to 80 centigrade to 100 centigrade, when you do the job on for iP and for galaxy series.
- Please do not set the temperature to more than 120 degrees, because it may damage the screen.
- Application Range: Separation the different cover plate, LCD and so on.
Specifications:
Color: Black
Plug: EU Plug, US Plug(Option)
Heating body power: 450W
Temperature control range: 60~120°C

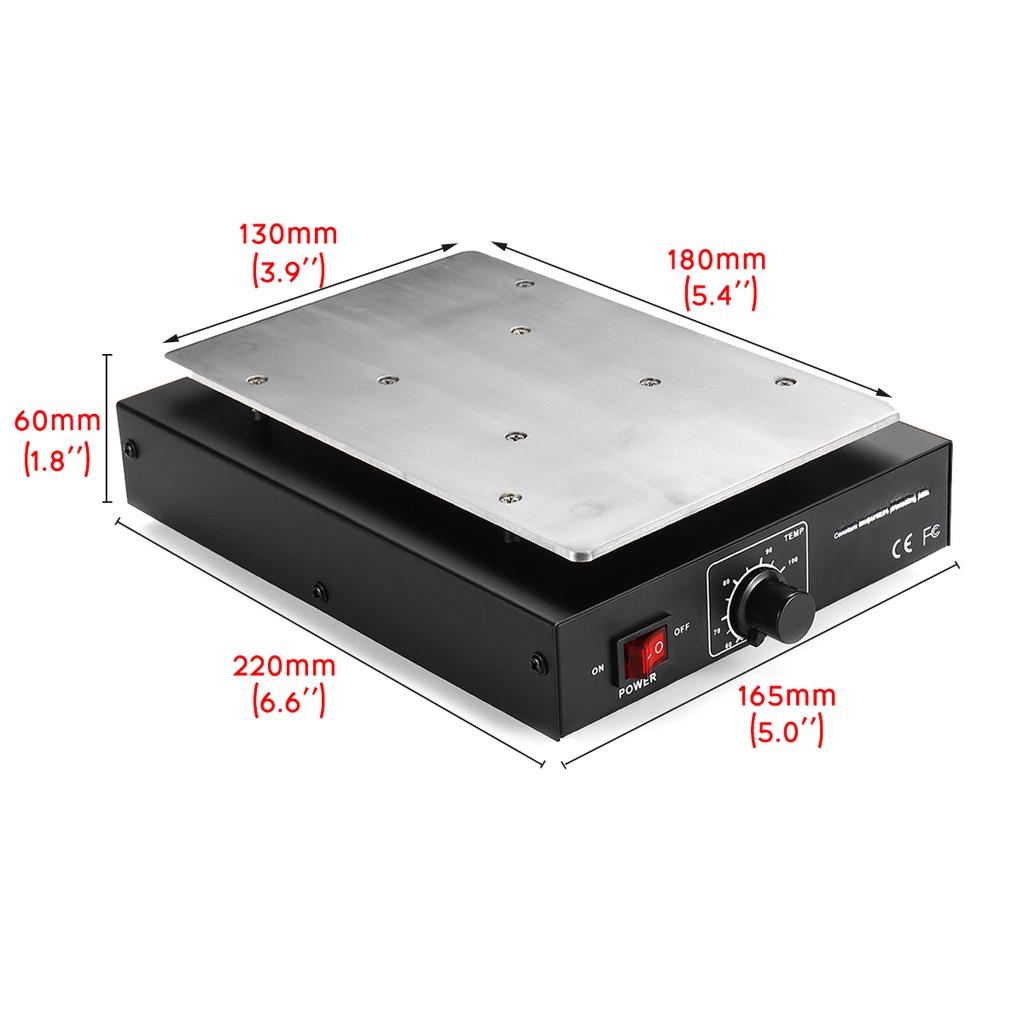

Heating area: 180x130mm/5.4x3.9''
Overall volume: 220x165x60mm/6.6x5.0x1.8''

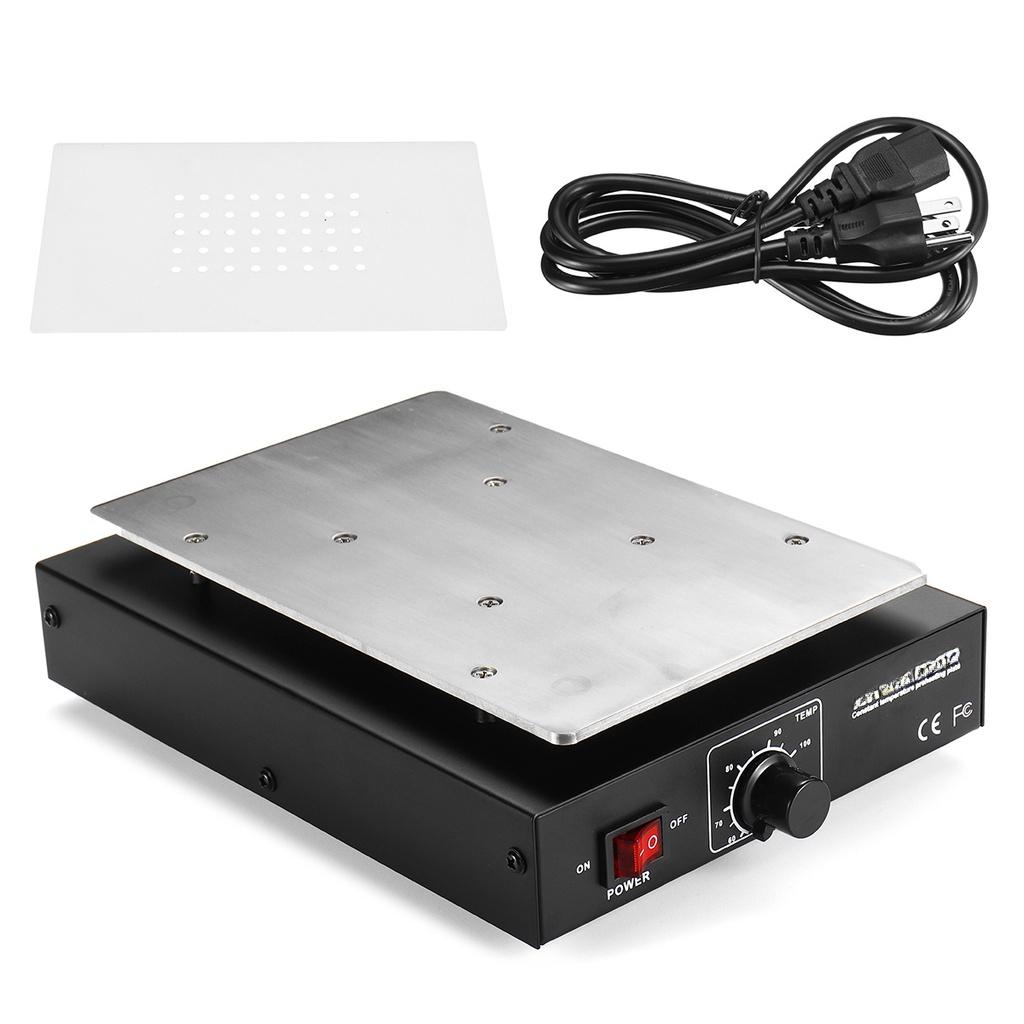

Package Included:
- 1 x Screen Separator
- 1 x Power Charger

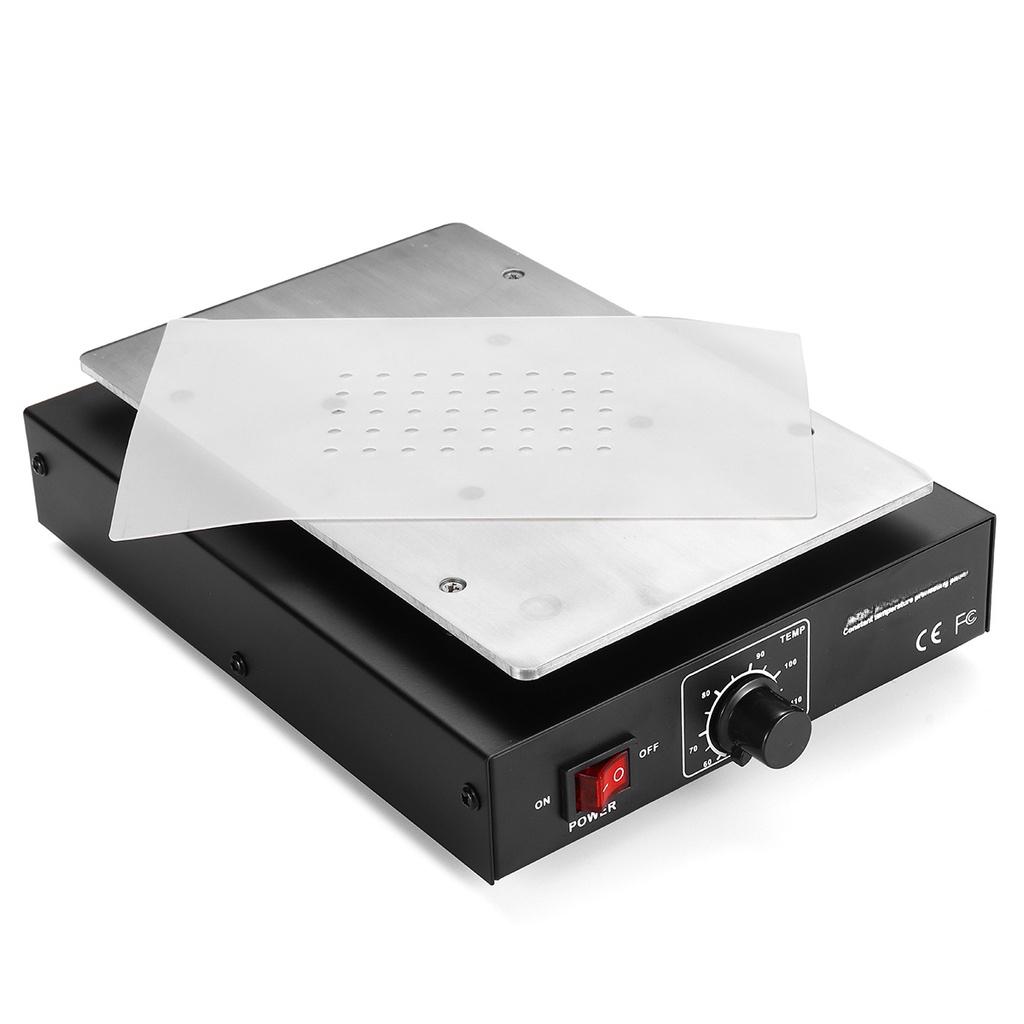

- 1 x Silicone Pad
- 1 x Package Box
Operation Steps:
- Step 1: Put your LCD with touch-screen on the metal plate, LCD side above.
- Step 2: Turn on the machine and wait for the metal plate become 80-100 degree.
- Step 3: Press the button and put the non-slip mat on the plate then put the LCD on it.
- Step 4: Start to separate the LCD off the glass with a core, then right and left movement with the core in between the LCD and the glass, please notice you must using gentle power and keep the core stay on the LCD surface, so that it will avoid the touch-screen be damaged.
