Feature:
1. 2 in 1 Desige: This device has the functions of a thermal imager and a digital multimeter, with compact size, light weight, built in battery, convenient to carry and use.
2. Thermal Imager Function: Thermal imaging pictures can be saved and viewed locally, and temperature reproduction can be realized with computer software.
3. Resolution and Temp: With 768 (24 x 32) thermal imaging resolution, 187 x 251 display image resolution, supporting ‑40℃‑300℃ range temperature measurement .
4. Testing Parameters: This digital multimeter tester has 4000 counts display, supports AC voltage, resistance, capacitance, duty cycle, diode, and on off detection.
. Multimeter Function: Support automatic and manual gear measurement switching, with data waveform recording and saving function, can achieve voltage waveform reproduction.
Specification:
Item Type: Thermal Imaging Multimeter
Model: ET11S
Power Supply: 1 x Lithium Ion Battery 1000mAh (built in)
Thermal Imaging Parameters:
Sensor: Uncooled focal plane
Image Catch Frequency: 16Hz
Thermal Imaging Resolution: 768 (24x32)
Display Image Resolution: 187x251
Field of View: 35°(V) x 55°(H)
Emissivity: 0.1 to 0.99 Adjustable (Default: 0.95)
Temperature Range: -40℃-300℃
Mode: Auto Gain
Palette: Iron Red, Rainbow
Temperature Difference Measurement: >0℃ ±2℃ or ±2%, ≤0℃ ±℃ or ±%
Temperature Display Accuracy: 0.1℃, 0.1℉
Multimeter Parameters:
Highest Input Voltage: 1000V
AC Highest Input Voltage: 750V
Maximum Resistance Measurement: 40MΩ
Maximum Capacitance Measurement: 100uF
Duty Cycle Measurement Range: 0.1%-99.9%
Diode Measurement Range: 0V-1.5V
Continuity Detection Maximum Resistance: 30Ω
Display: 4000 counts, updates 3 times per second

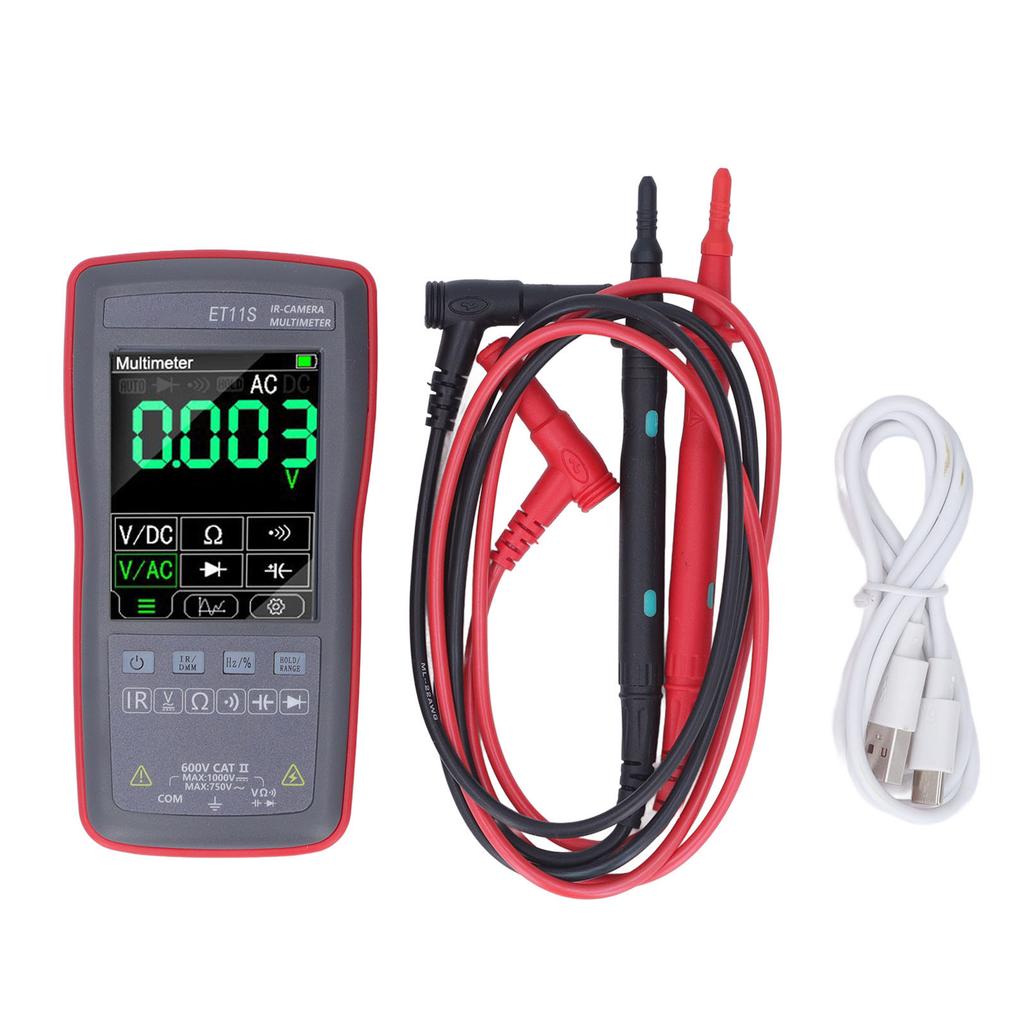

Package List:
1 x Multimeter
2 x Test Pen
1 x Charging Cable
1 x User Manual
