Feature:
1. LCD display: equipped with a LCD screen displaying digital readings, which is easy to read.
2. Auto loop display four data: the readings of energy consumption, voltage, current and power will be automatically switched in the screen, each one stays for 6 seconds.

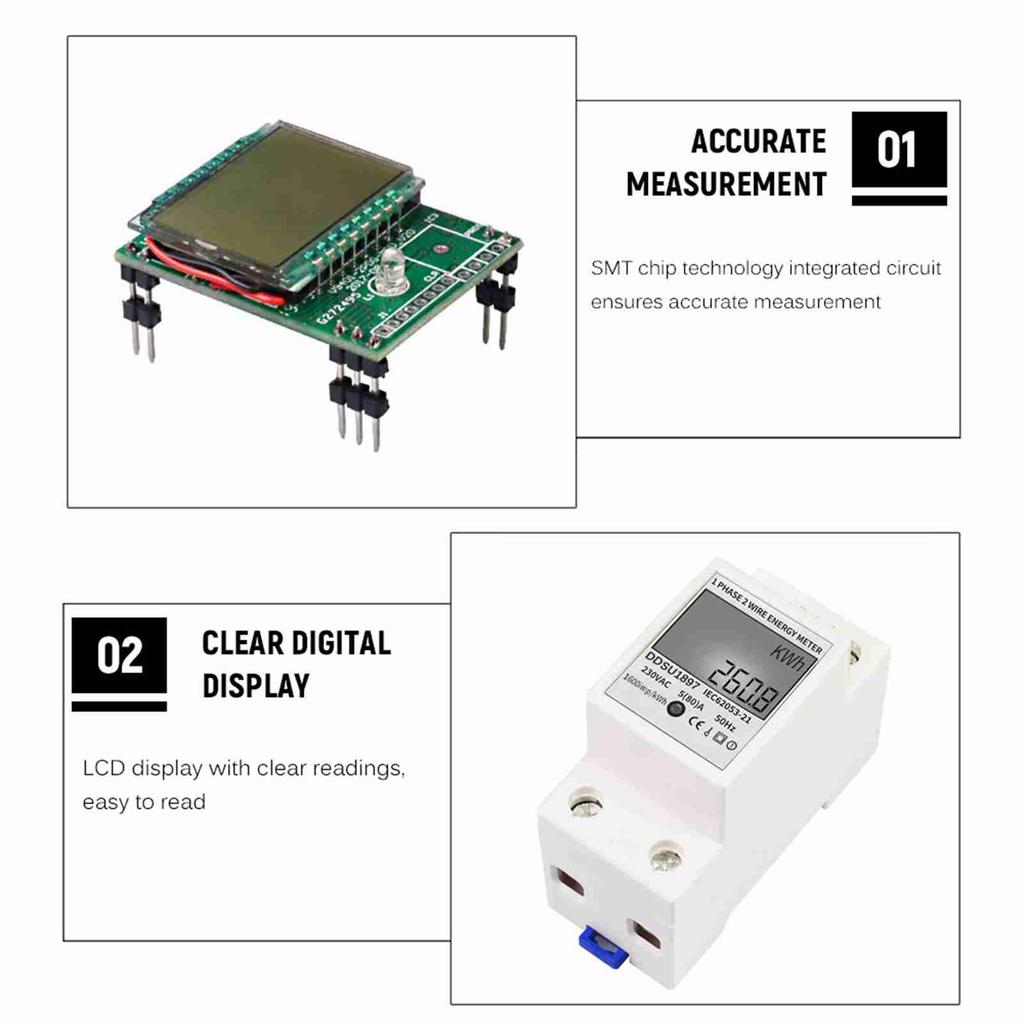

3. Quality material and high accuracy: retardant housing to ensure safety, SMT chip technology integrated circuit provides accurate measurement, excellent conductivity, corrosion resistance, and stable performance.
4. Compact and user friendly: 35mm rail for installation, and can be directly installed in the electric box, occupying only 2P position.
Specification:

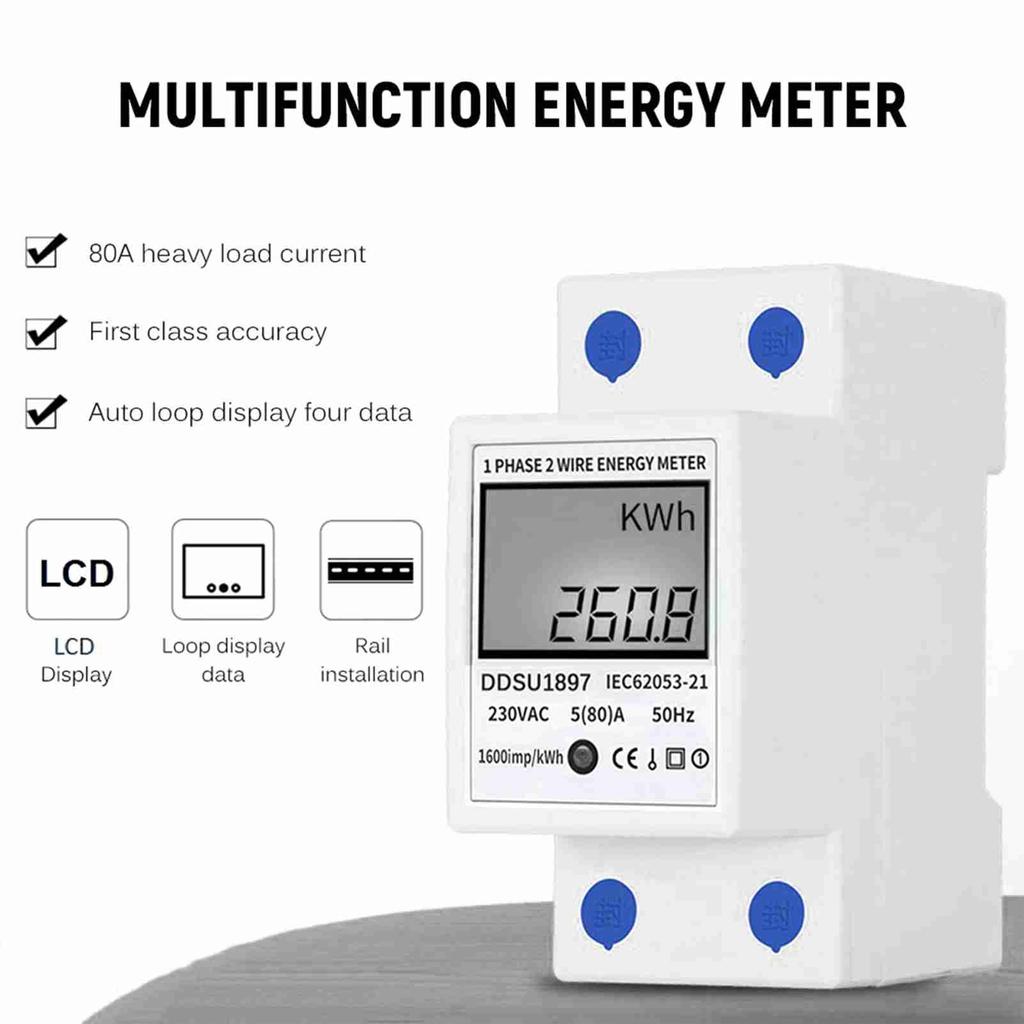

This energy meter can measure electrical parameters such as energy, voltage, current and power, and auto loop display the readings. Its compact and easy to install, safe to use.
Features:
LCD display: equipped with a LCD screen displaying digital readings, which is easy to read.
Auto loop display four data: the readings of energy consumption, voltage, current and power will be automatically switched in the screen, each one stays for 6 seconds.

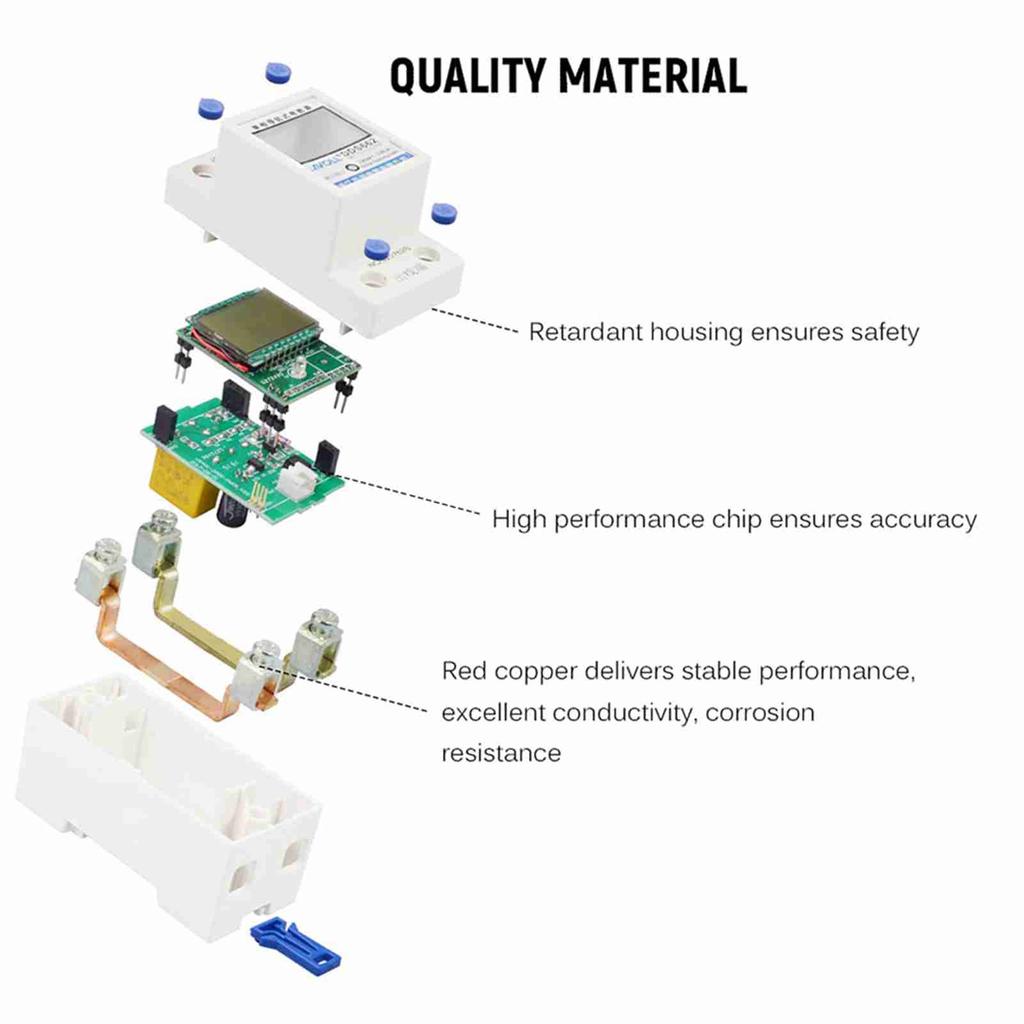

Quality material and high accuracy: retardant housing to ensure safety, SMT chip technology integrated circuit provides accurate measurement, excellent conductivity, corrosion resistance, and stable performance.

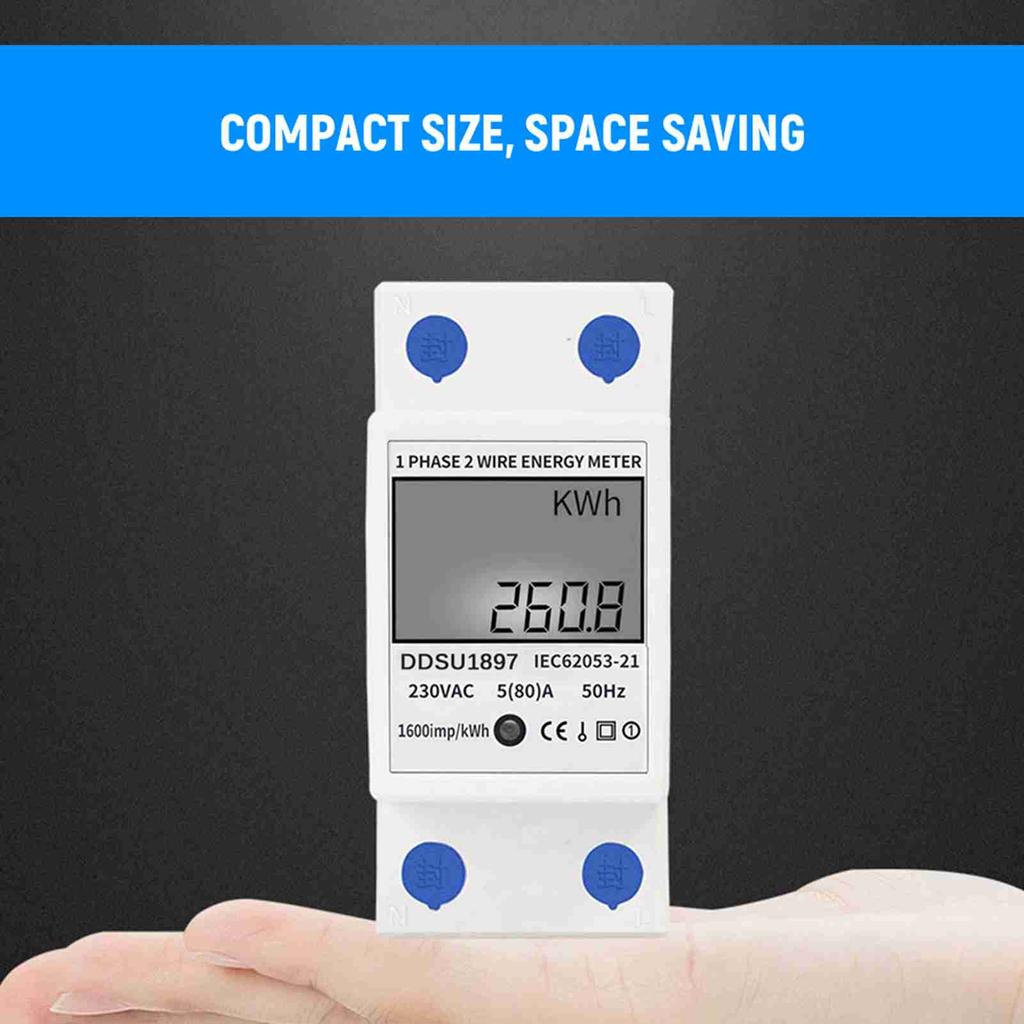

Compact and user friendly: 35mm rail for installation, and can be directly installed in the electric box, occupying only 2P position.
Specifications:
Material: ABS
Model: DDSU1897
Display: LCD Backlight LCD without Backlight (Optional)

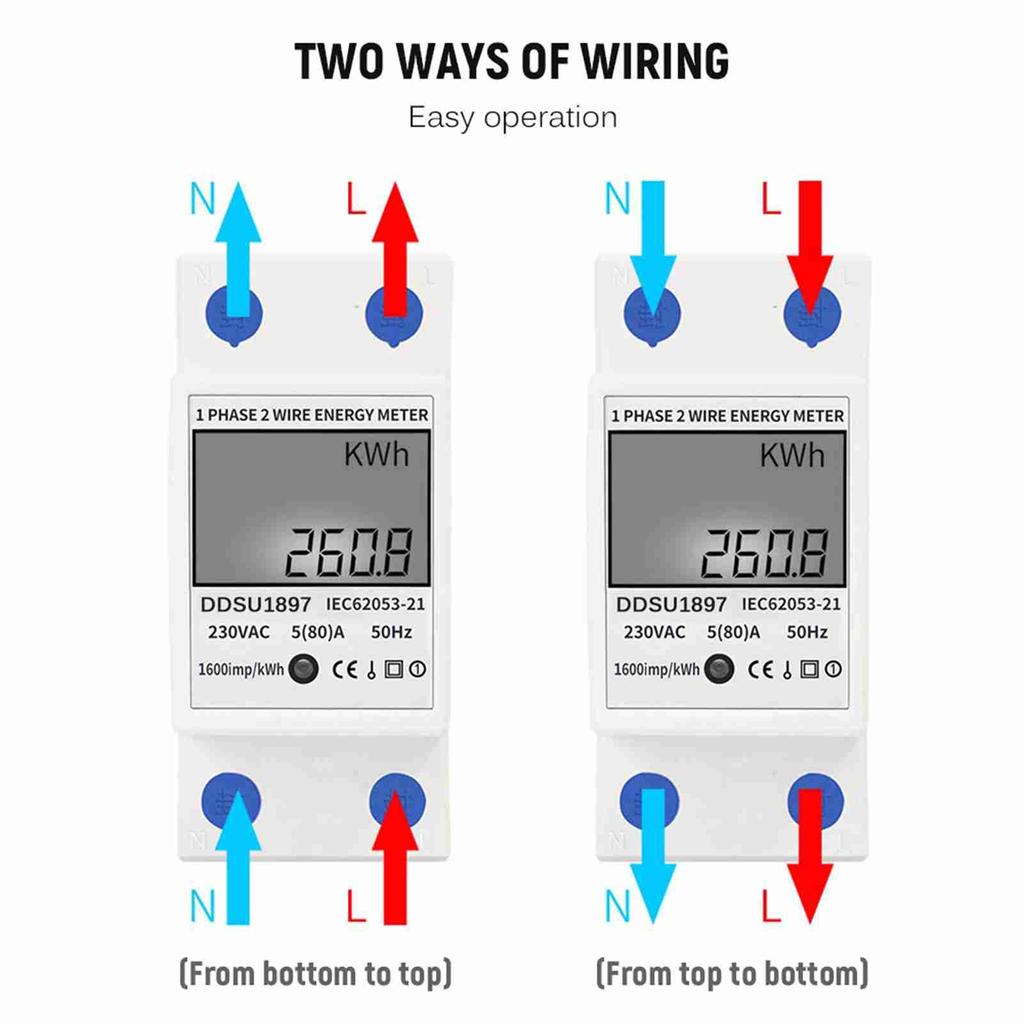

Wiring: top points for input and bottom points for output, or vice versa
Current: 5(60)A 5(80)A
Voltage: 220VAC 50Hz
Power: 17000W
Mounting: Distribution box DIN rail
Display: LCD
Operating Temperature: 20 celsius 55 celsius
Item Size: 7.85 * 3.65 * 4.3cm 3.09 * 1.43 * 1.69in
Item Weight: 100g 3.52oz
Package Weight: 135g 4.76oz
Package Size: 8 * 5 * 5cm 3.14 * 1.96 * 1.96in
Packing List:
1 * Energy Meter
1 * User Manual
Package List:
1 * Energy Meter
1 * User Manual
