Feature：
2 display for pages to enhance the function. Click the button to change the page; double-click the button to rotate the screen.
Full C port compatibility, full view of data, 0.96-inch TFT high-definition display, real-time charging power detection
Mobile phone charging measurement, power bank capacity record: for chargers, power banks and other charging equipment detection, multiple data are displayed on 1 screen to meet various testing needs
Bidirectional current, test function, visible charging speed
Support fast charging test, PD2.0, 3.0, for QC2.0, 3.0, FCP, AFC, PE, DASH VOOC, Super VOOC...
Computer charging capacity record, support power-off data saving
CNC metal shell, dustproof and drop-proof
Specification：

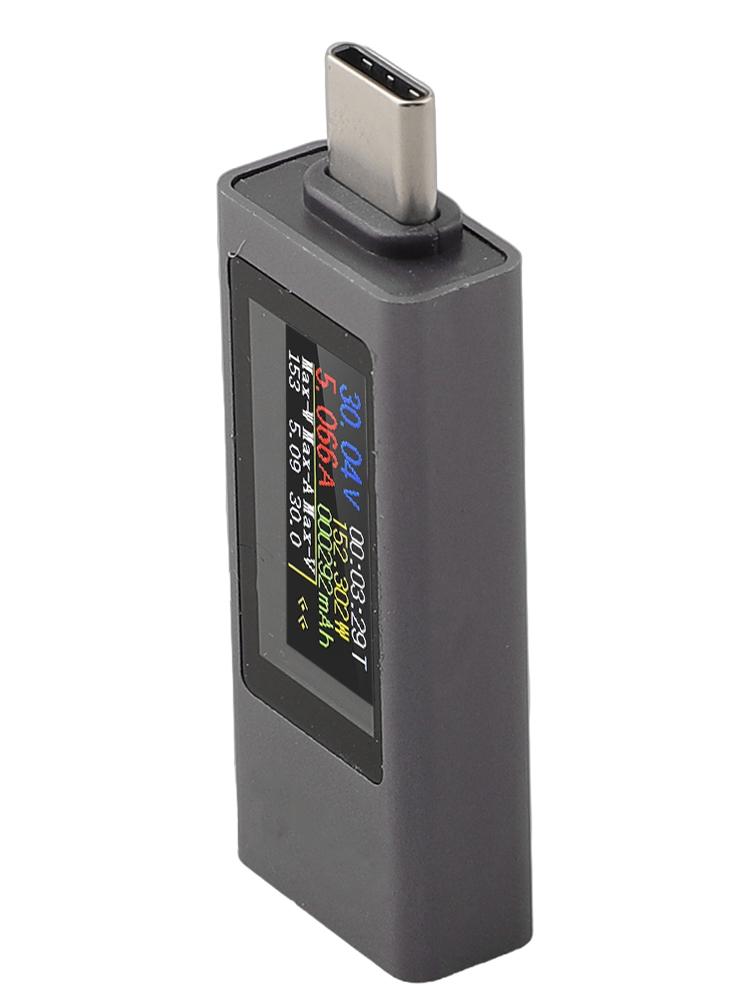

Part name: Type-C voltage tester
Model: KWS-2302C
Color: as show
Material: aluminum housing
Measurement range: 4-30V
Measurement current:0-12A
Measurement accuracy/grade:±(1%+ 5)
Power supply voltage: 5V
Power supply current: 5A
Power supply type: DC
Display: 1.06-inch TFT high-definition display
Size: 50.6x18x9mm
Weight: about 11.4g
Package Content:
1*Type-C voltage tester
Note:
1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2. Please allow slight manual measurement deviation for the data.
