Explanation by manufacturer
ATH-WS550
Equipped with a φ53mm “DEEP MOTION DRIVER”. Overwhelming deep bass reproduction with a large aperture driver with enhanced low frequency reproduction capability.
Exclusive driver structure that embodies overwhelming deep bass reproduction

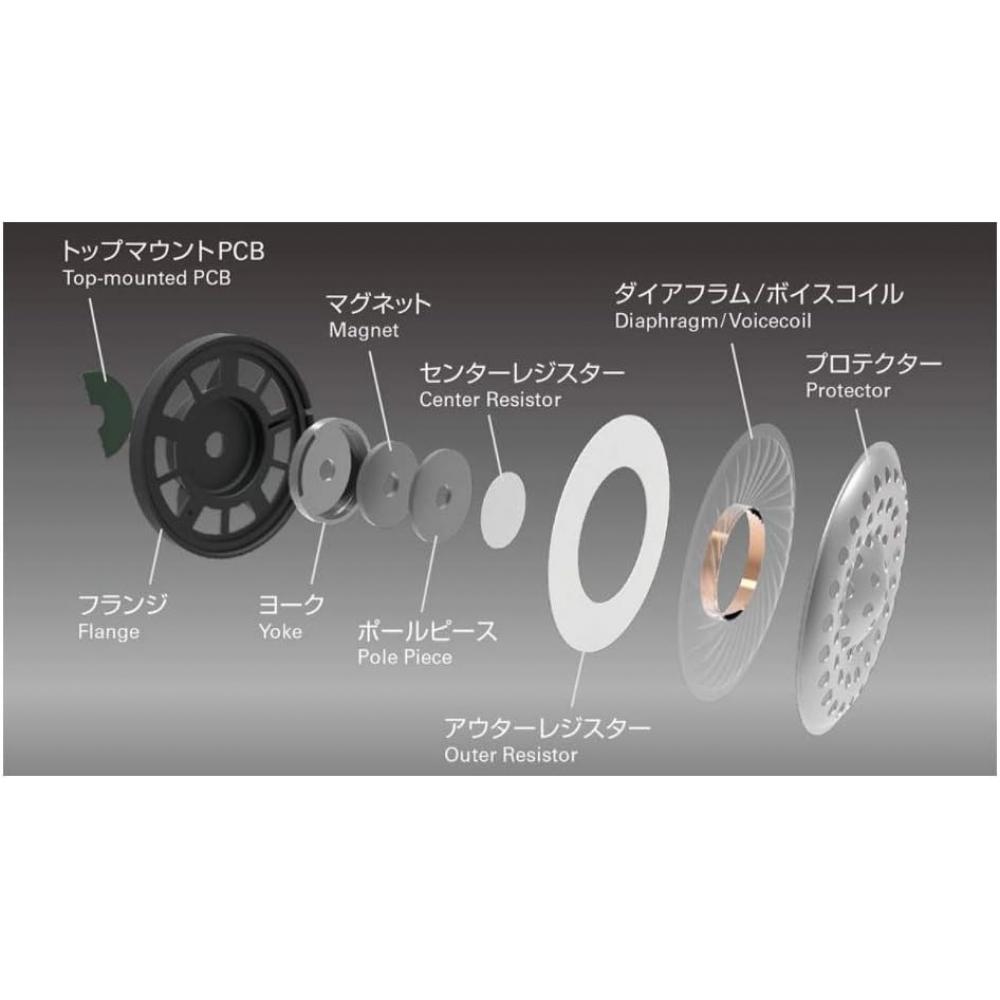

DEEP MOTION DRIVER
Equipped with a dedicated φ53mm driver with a large diaphragm area. The deep amplitude and strong magnetic circuit enhance vibration capability and emit an overwhelmingly low frequency.
Top Mount PCB Method: Mount the PCB to the top of the back of the driver to more accurately control the movement of the diaphragm. By making air braking uniform, the balance between low distortion bass and clear mid-high frequencies is adjusted.

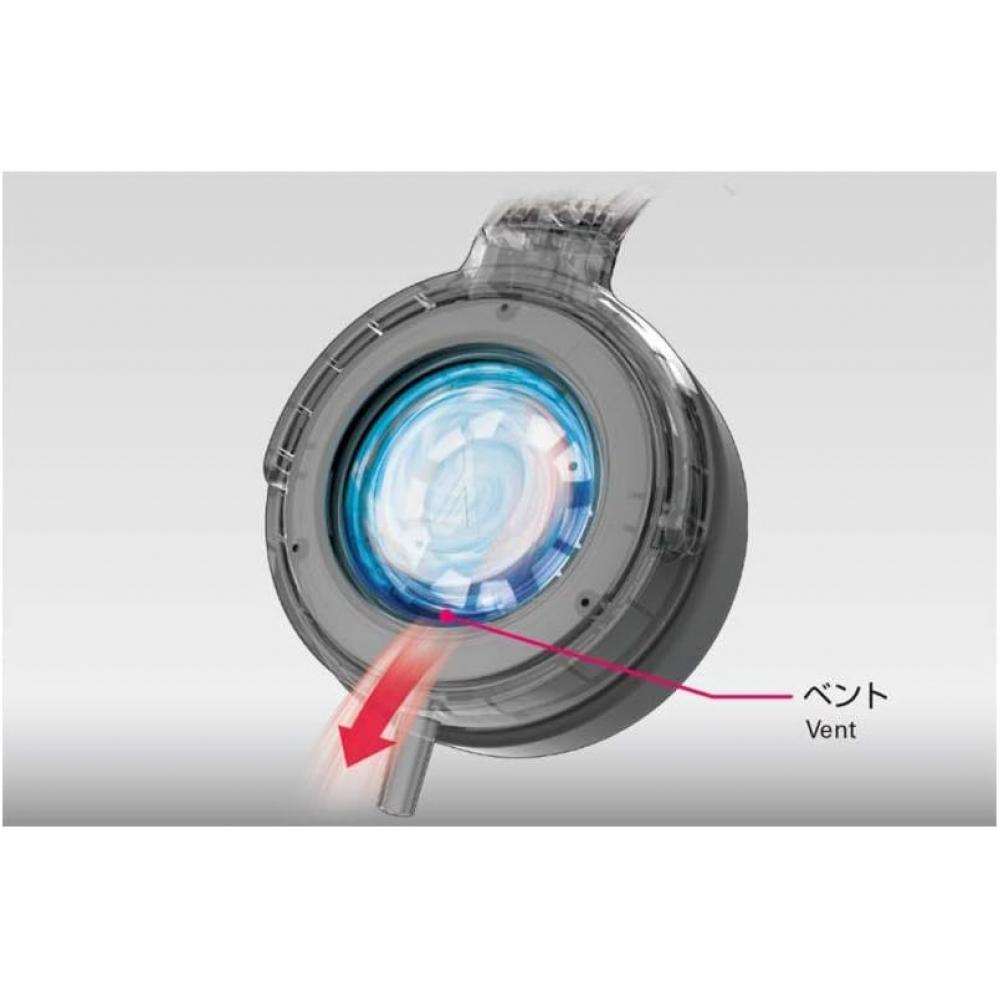

AIRFLOW BASED VENTING SYSTEM
Place the vent (air hole) in a good position according to driver characteristics. By improving bass output efficiency, high-quality low frequency reproduction is achieved.

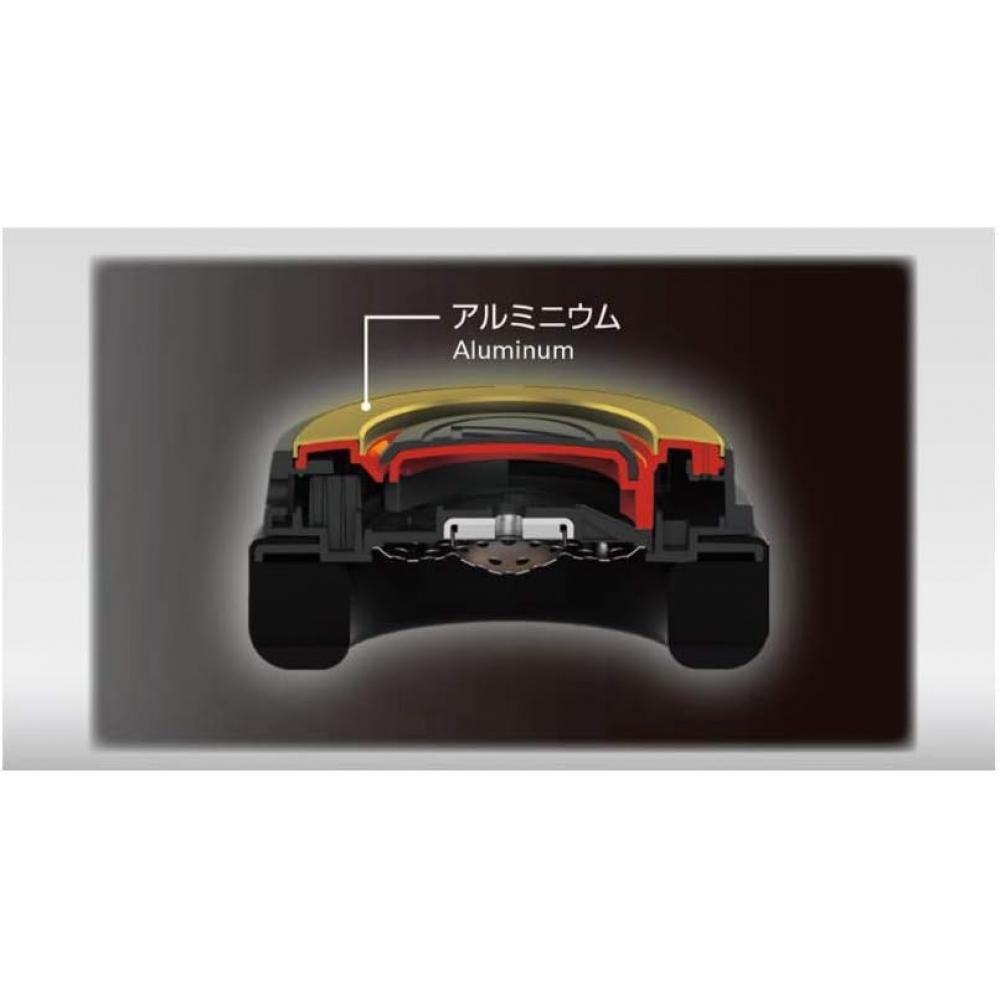

damping enclosure design
Adopts a strong enclosure design with aluminum material molded into a ring mounted to the housing. Unnecessary resonance caused by driver drive is suppressed by a sturdy ring, and tight, and clear playback sound is brought out.
Technical Data
model
sealed dynamic type
driver φ53mm
output sound pressure level 106dB/mW
Playback frequency band 8 to 24,000 Hz
max input 750mW
impedance 38Ω
Weight (excluding cord) approx. 254g
plug φ3.5mm gold-plated stereo mini (L type)
code 1.2m
sold separately replacement earpads
A deep motion driver that realizes overwhelming deep bass reproduction
The top-mount PCB system accurately controls the movement of the diaphragm.
UNIQUE AIRFLOW BASED VENTING SYSTEM
Damping enclosure design that brings out clear playback sound

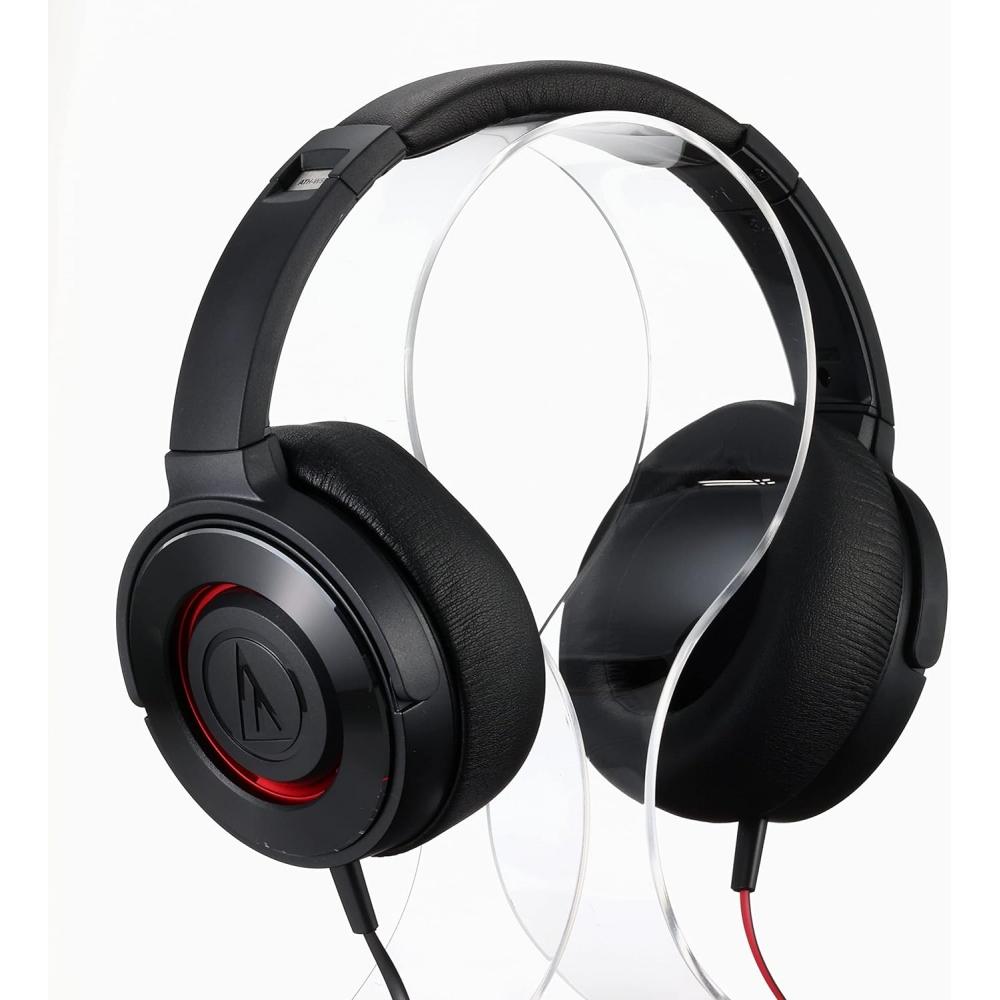

The gorgeous finish of the housing is beautiful, and it is available in 3 carefully selected colors.
To request a return or exchange, please note that it is mandatory to provide a video of the unpacking of the package.
